Ecotech
Ecotech Versa
Ecotech Versa
Couldn't load pickup availability
*Please note, Australian versions of these have the double O-ring*
VERSA™
VX-1

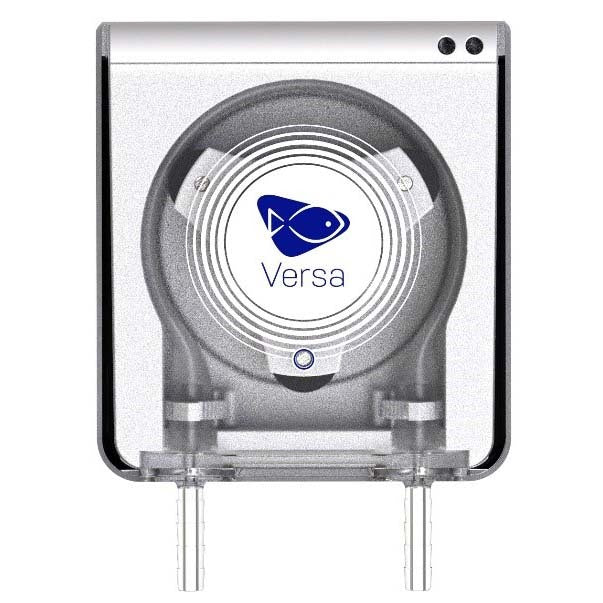

Single Versa Peristaltic Pump
![](https://ecotechmarine.com/wp-content/uploads/2020/01/VX1_02.png)
Dimensions | |
---|---|
Length | 3.15in.(80mm) |
Width | 2.34in.(59.4mm) |
Height | 4.21in.(106.9mm) |
Power Specifications | |
---|---|
Power Consumption | 12W |
Universal Input Range | 100-240VAC, 50/60Hz |
Peak Inrush Current | 1.3A |
Dosing Volume | |
---|---|
MIN | 0.5ul a minute |
MAX | 300ml a minute |
Connectors | |
---|---|
Included |
Female PTC & Barbed Adapter |
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Versa_Explode-uai-720x390.jpg)
HEAVY-DUTY
Commercial-grade construction using durable ABS plastics and precision gearing make the Versa™ is built to last. Designed to handle long term continuous use applications, time between servicing is greatly extended with the use of laboratory-grade silicone tubing.
FLEXIBLE INSTALLATION
Available for individual use or as a four-pack including a Base Station. Up to four individual pumps can dock to each Base Station. The Base Station features a consolidated power supply and tactile indexing buttons.
![](https://ecotechmarine.com/wp-content/uploads/2019/11/VXB_Front-uai-720x220.jpg)
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Planetary-Gear-Drive.png)
PLANETARY GEAR
The Versa’s drive configuration is optimized for precision and longevity — two essential characteristics for a precise yet robust market-leading peristaltic pump.
MODES
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Auto-Mode.png)
Auto Mode
Auto mode schedules dosing specific to what additive or solution is being dosed. This mode utilizes standard dosing practices and known water parameter changes in a reef tank based on light cycle and biological activity. The Versa™ does not determine dosing volume, that requires testing and tuning. It will however, schedule dosing based on the salt or additive selected.
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Continuous-Mode.png)
Continuous Mode
Continuous mode sets a dosing rate (volume/min) that runs when the pump is powered. Continuous mode is an always-operating dosing mode and needs to be controlled by external means (controller, timer, float switch, etc.).
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Manual-Mode.png)
Manual Mode
Manual Mode allows the user to create a program specifying dosing volumes and or durations. The Versas variable operational capability allows volume dosing to be carried out a specified rate or over a specified time period. Up to 30 discrete dosing events can be created per pump in a 24hr period. The Catch-Up feature allows the Versa™ to correct a dosing difference if the pump is shut down or is interrupted during its daily program. Safe-guards help protects against some potential dosing issues.
